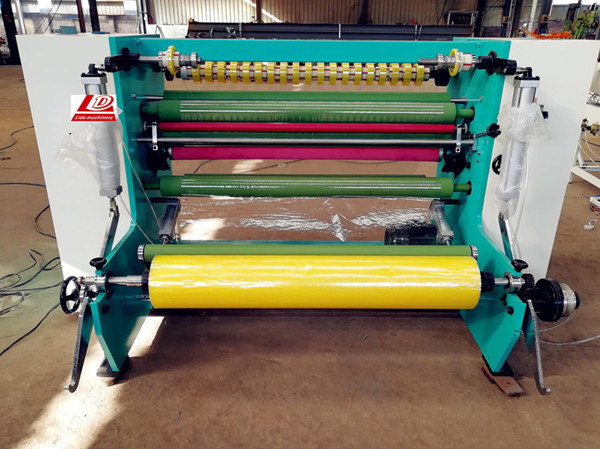

Multifunctional BOPP tape and Masking tape cutting machine

It can cut adhesive tape roll to different length & size from 10mm to 1000mm and the final tape can be used for carton sealing.

Details of the BOPP tape and Masking tape cutting machine:

Automatic Grade: Semi Automatic

Voltage: 380V, 460V

Power: 3KW

Speed: 180m/minute

Working width: 1300mm, 1600mm

Usage: BOPP tape & Masking tape roll cutting

Production time: 20days

After-sales Service Provided: Engineers available to service machinery overseas

Features of the tape cutting machine:

1. Automatic consecutive 4-shaft changing:

when the rewinding operation is finished on one set of shafts, the machine will change automatically onto another set of shafts without any stop. It will have higher efficiency.

2.Three-step length counter: Giving accurate pre-setting of rewinding length.

3. Pneumatic brake: Brings the machine to an immediate halt when working at high speed because of inertia ,ensures excellent steady performance .

4. Automatic tension control

5. (Optional) Auto labeling and slitting stationery tape functions

6. (Optional)auto loading device for heavy jumbo roll

This adhesive tape cutting machine includes four parts: Slitting machine, core loader, core cutter and rewinder.

Paper tube cutting machine: Cutting long paper core to the right size you want.

Paper tube loader: Set the paper core on the rewinding shafts.

Tape rewinder: Rewinding the imperfect tapes to good one.

Technical parameters of this BOPP tape slitter rewinder machine:

Specifications of LD-1300A tape slitter rewinder machine
L*W*H(m)		2.27m*1.15m*1.38m
Power		3phase,380v,50Hz,25KW
Practical coating speed		0-150/min
Working width		1300mm
power		4kw
Max unwinding diameter		700mm
Specifications of LD-L1300 auto core loader (Set the paper core on the rewinding shafts)
L*W*H(M)			5.6m*0.9m*1.35m
Inner diameter of paper core			3 inches
With 2 moulds, size custom-made
Specifications of LD-P1300 auto core cutter (Cutting long paper core to the right size you want)
L*W*H(M)	1500mm*600mm*1150mm
Slitting width	By mould control
Paper core diameter	76.5 mm(3”)
