Super Clear BOPP Tape Slitting Rewinding Machine

It can cut tape roll to different length & size from 10mm to 1000mm and the final tape can be used for carton packing.

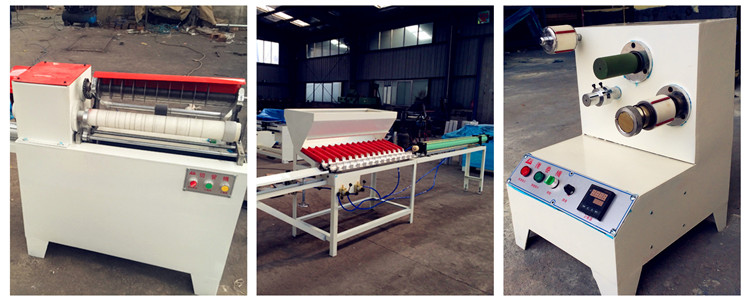

A complete Super Clear BOPP Tape Slitting Rewinding Machine including 4 machines :

1) Automatic paper core cutter

2) Slitting & rewinding machine

3) Automatic core loader

4) Doctor rewinder

Technical parameters of this super clear BOPP tape slitting rewinding machine:

Effective working width	1350mm
Speed	180m/min
Inner core diameter	3''
Mini slitting width	12mm
Razor size	0.2*22*66mm
Max unwinding diameter	700mm
Max rewinding diameter	300mm
Power	380V,50HZ,5HP

Features of the Super Clear BOPP Tape Slitting Rewinding Machine:

1) Easy starting & operation for new beginners ,low investment & easy to manage

   the raw materials , only need jumbo roll & paper core.

2) 3-step length counter , can set any length you want for tapes .

    fast speed, 180m/min . Make one carton tapes in 10mins.

3) Tape width is controlled by mould.

    Every width need separate mould.

    For ex.

    1inch width tape need 1 inch mould for it.

    2inch width tape need 3 inch mould for it.

4) Two turrets, 4 shafts automatic & consecutive changing . When the tapes finish rewinding on 2 rewinding shafts, it will change automatically & consecutively to another 2 rewinding shafts. So there is less time stop when machine working .

5) English user operation panel.

6) Pressure roller on rewinding shaft for making more transparency .

     magnetic powder clutch for unwinding/ rewinding tension

     controlling

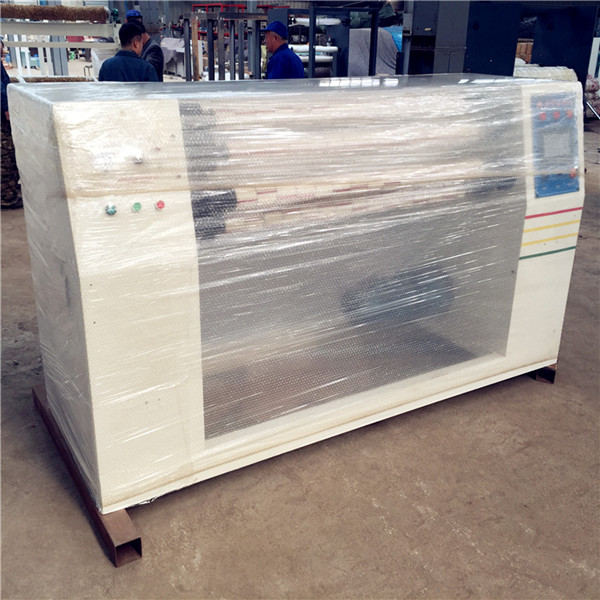

Packing:
